waste plastic pyrolysis plant

Waste plastic pyrolysis plant

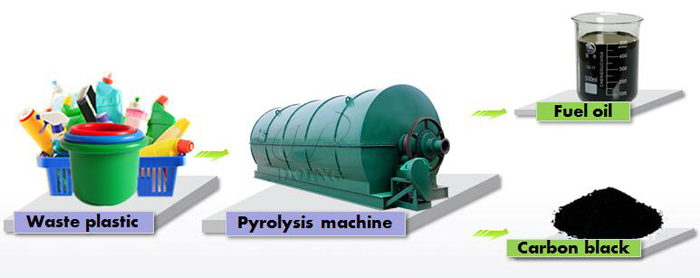

The plastic pyrolysis plant designed to turn waste plastic to fuel oil and carbon black. As a professional manufacturer of plastic pyrolysis plant design,   pyrolysis plants with the special design and good performance, which make them become more and more popular in the domestic and foreign markets.

1.Plastic pyrolysis plant Reactor

plastic pyrolysis plant reactor

Plastic pyrolysis platn reactor

It is the most important part of the  plastic pyrolysis plant, because it is the place where pyrolysis process takes place. Our reactor is made from Q345R steel, which can avoid it being burnt through, thus the service life of the reactor is longer. In addition, the reactor of batch and semi-continuous plastic waste pyrolysis machine is rotary, but for the fully continuous pyrolysis plant, the reactor is fixed. So the heating efficiency and working efficiency can be increased basing on the different capacity.


pyrolysis plant condenser

Pyroysis plant condenser

The new-type tubular condenser has the features of larger cooling area and better cooling effect. So it can improve the oil yield efficiency.

3. Dedusting System

plastic pyrolysis plant dedusting system

Plastic pyrolysis plant dedusting system

It mainly includes water sprayer, ceramic ring filter and washing chamber. It can remove the dust, dioxin and other component in the combustible gas, then the gas can be recycled to heat the reactor. Thus you can save a lot of energy cost. For the exhaust gas produced by burning the fuel, it can also be purified by the de-dusting system before emission.

4. Safety device

plastic pyrolysis plant safety devices

Plastic pyrolysis plant safety devices

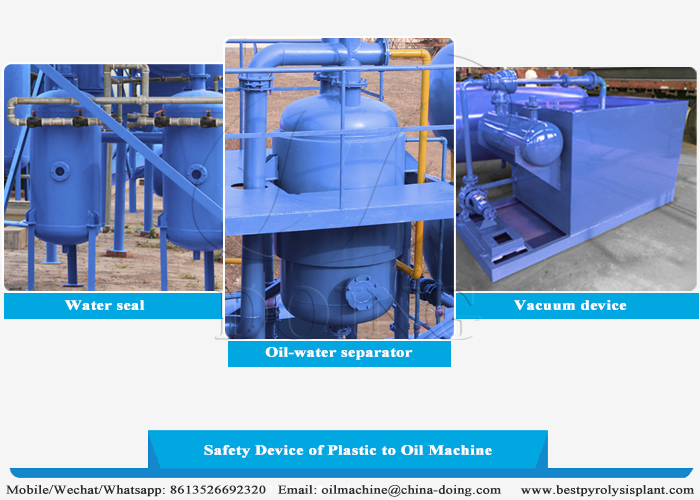

The plastic pyrolysis plant is equipped with advanced safety devices, such as over temperature and pressure alarm system, auto pressure releasing system, protecting shell, fire fighting devices and so on, all of which can ensure the plant can work in a safe condition. At the same time, it can also protect the workers

5. PLC Controlling System


PLC Controlling System

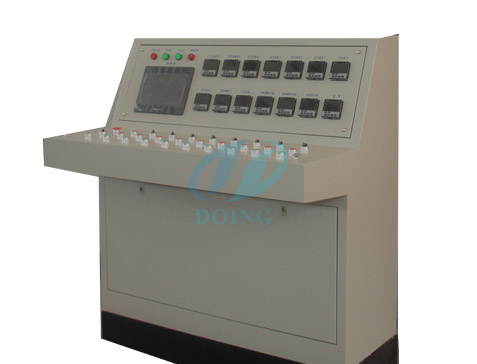

It can achieve intelligent operation and avoid the mistakes caused by manual operation.

Technical parameter of plastic pyrolysis plant design
  Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material waste plastic,
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T
  • 1.China Suppliers of plastic pyrolysis plant design,sale plastic pyrolysis plant design.provide client plastic pyrolysis plant design designs.
  • 2.No pollution to environment with emission report to meet international environment standard.
  • 3.Provide plastic pyrolysis plant design project report ,financial analysis and plastic pyrolysis plant design cost to clients.
  • 4.Send engineer Installation plastic pyrolysis plant design,training workers to operate machine.
  • 1.High oil yield;no bad smell during process.
  • 2.Enough safety systems;normal pressure.
  • 3.Recycled tail gas to heating plastic pyrolysis plant design;no waste emission.
  • 4.Auto welding to ensure plastic pyrolysis plant design life, service life will be 8-10years.
  • 5.Excellent service(pre-service,selling service,after-sale-service).
Average oil yield from Plastic pyrolysis plant design :
waste plastic to oil 60%
More details about waste plastic, oil yield
