Waste plastic pyrolysis plant description in details

Waste plastic pyrolysis plant product introduction

Update Time:2016/3/19  |   Plastic pyrolysis plant

Waste plastic pyrolysis plant

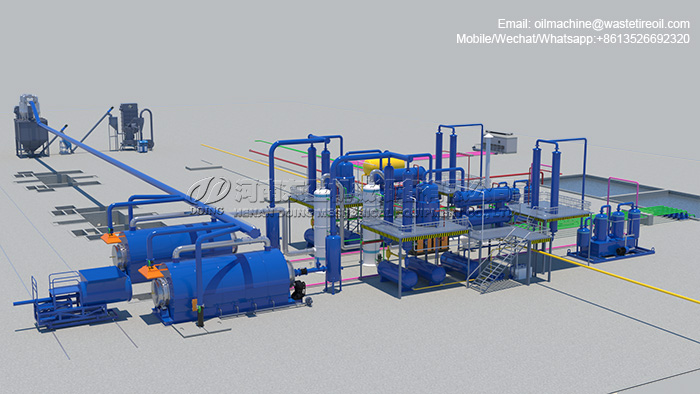

Waste plastic pyrolysis plant product photo

Payment & Shipping Terms:

FOB Price
  • Min Order
  • Shipping Port
  • Delivery Time
  • Payment Terms
  • Supply Ability
US $ / Set
  • 1 Set/Sets
  • QingDao
  • 15days
  • T/T
  • 30sets/month

waste plastic pyrolysis plant

Waste plastic pyrolysis plant

Plastic is widely used in people’s daily life in all countries. It brings people convenience but also causes pollution. Currently, waste plastics are always be disposed by landfill, burning and recycling.  However, most of the disposal will cause secondary pollution. The appearance ofwaste plastic recycling machine produced by Doing Group can not only solve the plastic pollution but also bring huge profit.

Our waste plastic pyrolysis plant will process waste plastics with pyrolysis technology. After processing, the final products will be fuel oil and carbon black. Fuel oil is a good heating fuel which can be used in many industries for heating purpose. Carbon black and be further processed into pellet or powder.
Till now, our waste plastic pyrolysis plant has be exported to more than 30 countires, such as Egypt, Malaysia, Mexico, Italy, Romania, Ecuador, Haiti, Thailand etc.
If your country also faces with plastic pollution, welcome to contact us and get more information about our waste plastic pyrolysis plant.

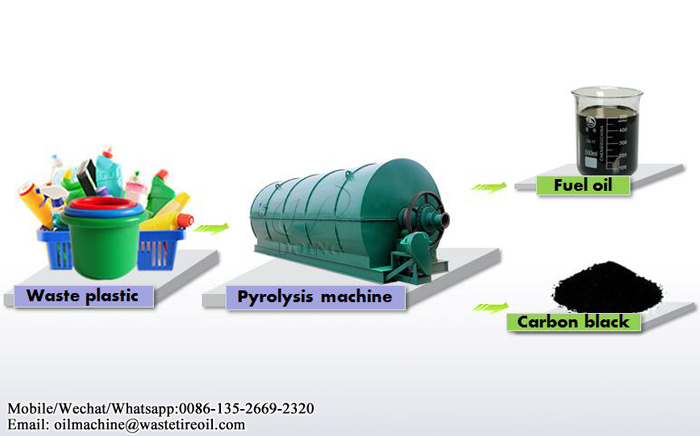

Waste plastic pyrolysis plant working process:


Waste plastic pyrolysis plant

1.In the waste plastic continuous pyrolysis process, the waste plastic will firstly be put into the reactor.
2.Secondly, burn the fuel material (coal, wood, oil or natural gas) in the combustion system. The reactor will slowly heat, when the temperature reach around 120℃, it will produce oil gas.
3.Thirdly, oil gas will be processed and then go to cooling system to cold liquid oil. The gas which can not be liquid under normal pressure will go back to combustion system to replace the fuel material to burn the reactor.
4.Fourthly, after finished oil production, the temperature of reactor will be down and the carbon black will be discharged automatically.


Features of waste plastic pyrolysis plant:

pyrolysis features

Features of waste plastic pyrolysis plant

Safety:
1. Reactor with auto welding to guarantee the quality of welding seam and avoid cracking
2. Professional heating treatment and x-ray detection chamber for welding seam.
3. Vacuum system to prevent oil gas be back to reactor causing accident.
4. with temperature meter, pressure meter and safety valve.
Environment friendly:
1. Dedusting system to prevent gas and dust from coal burning
2. The exhaust gas will be recycled for heating reactor, no gas pollution
3. Well sealing on every junction parts to prevent gas leak, no smelly
Longer life:
1.use Q245R special steel plate ,thickness 16mm. welding seam with auto welding and will get heating treatment and x-ray detection to extend the life of reactor to the most extend.
2. The life will be 6-8 years
Energy saving:
1. Well sealing for heating system, no gas leak and saving fuel.
3.Waste plastic pyrolysis plant of Doing is convert waste plastic to oil .The raw material of conver plastic into oil machine is waste palstic ,waste tyres,waste rubber. Convert plastic into oil machine with high efficient and environmently friendly ,no pollution to air,waste and earth .






Technical parameter of waste plastic pyrolysis plant
  Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material waste tyre, waste plastic, waste rubber,
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T
  • 1.China Suppliers of waste plastic pyrolysis plant,sale waste plastic pyrolysis plant.provide client waste plastic pyrolysis plant designs.
  • 2.No pollution to environment with emission report to meet international environment standard.
  • 3.Provide waste plastic pyrolysis plant project report ,financial analysis and waste plastic pyrolysis plant cost to clients.
  • 4.Send engineer Installation waste plastic pyrolysis plant,training workers to operate machine.
  • 1.High oil yield;no bad smell during process.
  • 2.Enough safety systems;normal pressure.
  • 3.Recycled tail gas to heating waste plastic pyrolysis plant;no waste emission.
  • 4.Auto welding to ensure waste plastic pyrolysis plant life, service life will be 8-10years.
  • 5.Excellent service(pre-service,selling service,after-sale-service).
Average oil yield from Waste plastic pyrolysis plant :
waste tyre to oil 45%
waste plastic to oil 60%
waste rubber to oil 75%
More details about waste tyre, waste plastic, waste rubber, oil yield
