Tyre recycling plant description in details

Tyre recycling plant product introduction

Update Time:2016/2/20  |   Waste recycling machine

Tyre recycling plant
Tyre recycling plant product photo

Payment & Shipping Terms:

FOB Price
  • Min Order
  • Shipping Port
  • Delivery Time
  • Payment Terms
  • Supply Ability
US $ / Set
  • 1 Set/Sets
  • QingDao
  • 15days
  • T/T
  • 30sets/month

Tyre recycling plant

tyre recycling plant

Tyre recycling plant

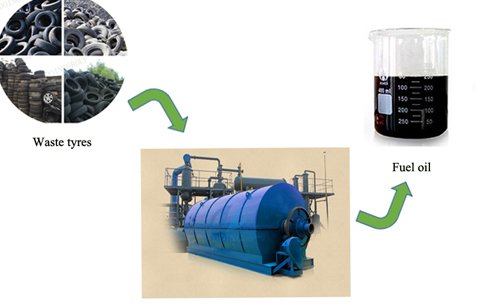

Waste tyre is often called "blacke pollution", burn and landfill the waste tyres is wrong ,it not only causes fire,but also pollutes the environment .However ,it is a kind of valuable renewable resources for human beings.Tyre recycling plant of Doing  can convert waste tyre to avaliable energy ,such as fuel oil ,carbon black ,steel wire.

Tyre recycling plant feature

tyre recycling plant

Tyre recycling plant feature

1.We can get tyre oil,carbon black,and steel from waste rubber tyres and plastics.
2. High oil output rate 45%-55%, the rubber up to 60%.
3. Rapid condenser, we have 5 condensers, the cooling area up to 53 square meters, the area larger, the more oil u can get.
4. Large capacity: 6tons / 8tons / 10tons / 12tons / 20tons.
5. Safety device, we have automatic alarm bells with pressure gauge, If pressure gauge more than the pressure, bells will ring.
6. Environmental protection, no pollution, no smell.
7. 6—8 years life, 3 years warranty

Technical parameter of tyre recycling plant
  Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material waste tyre, waste plastic, waste rubber,
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T
  • 1.China Suppliers of tyre recycling plant,sale tyre recycling plant.provide client tyre recycling plant designs.
  • 2.No pollution to environment with emission report to meet international environment standard.
  • 3.Provide tyre recycling plant project report ,financial analysis and tyre recycling plant cost to clients.
  • 4.Send engineer Installation tyre recycling plant,training workers to operate machine.
  • 1.High oil yield;no bad smell during process.
  • 2.Enough safety systems;normal pressure.
  • 3.Recycled tail gas to heating tyre recycling plant;no waste emission.
  • 4.Auto welding to ensure tyre recycling plant life, service life will be 8-10years.
  • 5.Excellent service(pre-service,selling service,after-sale-service).
Average oil yield from Tyre recycling plant :
waste tyre to oil 45%
waste plastic to oil 60%
waste rubber to oil 75%
More details about waste tyre, waste plastic, waste rubber, oil yield
