Pyrolysis plastic to oil plant product introduction
Pyrolysis plastic to oil plant function:Pyrolysis plastic to oil plant is designed not only for waste waste plastic recycling, but also pyrolysis waste tires and waste rubber. The main product from pyrolsis plant is fuel oil. It's a green way for waste recycling.

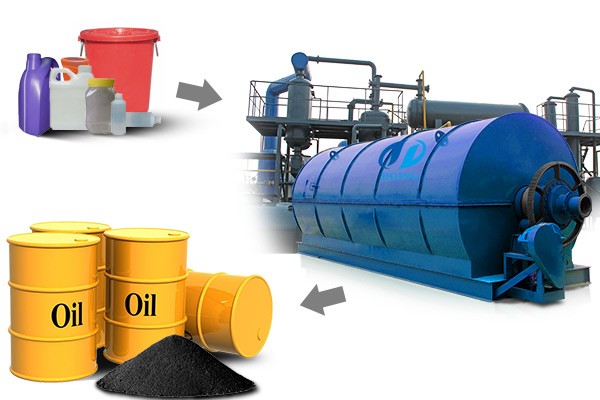

Pyrolysis plastic to oil plant
Pyrolysis plastic to oil plant technology feature:
The technology we are using for waste recycling is "pyrolysis". Pyrolysis is a green technology for waste recycling. It recycles waste tire, waste plastic and waste rubber into fuel oil. It's a renewable energy and helpfuel to our environment. It solves environmental pollution which is becoming a serious problem in everywhere. I believe it's a meaningful industry.
Oil Yield of pyrolysis plant:
From 1000kg tires, you can recover 450kg furnace oil, 300kg carbon black and 150kg steel wire, if it's whole tires. This is just a normal rate. If you remove steel wire before doing pyrolysis, or cut tires into pieces, the oil yield is higher accordingly.
As we see in our usual life, plastic products are usually mixed together by different kinds of materials. So unlike waste tires or rubber, it's a little hard to give a certain number of oil yield from waste plastics. From PE you can recover 95% oil, from PP and PS you can recover 90% oil, and it's 40% for ABS. But PVC and PET are not working with pyrolysis to oil plant. So the oil yield of waste plastics has a wide range, from 20% to 80%.
The oil yield of waste rubber is 30% - 70%. From rubber cable the oil yield is 35%, it's 30% for sole, from rubber tires the oil yield is 40% - 50%. Well some good raw material can product 70% oil, like the oil yield of submarine cable can reach 75%.
|Technical parameter of pyrolysis plastic to oil plant|
|2||Raw material||waste plastic, waste tyre, waste rubber,|
|3||Structural form||Horizontal rotation||Horizontal rotation||Horizontal rotation|
|4||24-hour Capacity||6 ton||8 ton||10 ton|
|5||Oil yield||2.7-3.3ton||3.6 -4.4ton||4.5 -5.5ton|
|7||Material of pyrolysis Reactor||Q245R||Q245R||Q245R|
|8||Thickness of pyrolysis Reactor||16mm||16mm||16mm|
|9||Rotate speed of pyrolysis Reactor||0.4turn/minute||0.4turn/minute||0.4turn/minute|
|11||Mode of cooling||Water cooling||Water cooling||Water cooling|
|12||Cooling area of condenser||100sqm||100sqm||100sqm|
|13||Kind of transmission||Internal gear drive||Internal gear drive||Internal gear drive|
|15||Size of Reactor(D×L)||2200×6000||2200×6600||2600×6600|
|16||Working form||Intermittent operation||Intermittent operation||Intermittent operation|
