Waste tyre recycling to fuel oil pyrolysis plant description in details

Waste tyre recycling to fuel oil pyrolysis plant product introduction

Update Time:2018/5/21  |   Pyrolysis plant

Waste tyre recycling to fuel oil pyrolysis plant
Waste tyre recycling to fuel oil pyrolysis plant product photo

Payment & Shipping Terms:

FOB Price
  • Min Order
  • Shipping Port
  • Delivery Time
  • Payment Terms
  • Supply Ability
US $ / Set
  • 1 Set/Sets
  • QingDao
  • 15days
  • T/T
  • 30sets/month

waste tyre pyrolysis plant

Waste tyre recycling to fuel oil pyrolysis plant

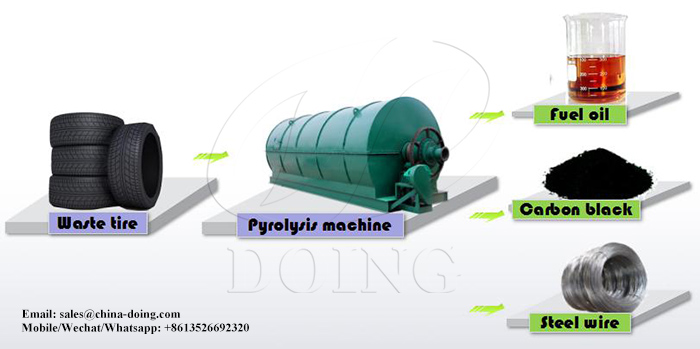

Waste tyre recycling to fuel oil pyrolysis plant is a set of waste recycling equipment which can convert waste tyre into useful fuel oil through pyrolysis reaction. After the pyrolysis working of waste recycling to fuel oil pyrolysis plant, you can get fuel oil, carbon black, steel wire and incondensable gas. Now, let me show you how the waste tyre recycling to fuel oil pyrolysis plant work.

The working process of DoingGroup's Waste tyre recycling to fuel oil pyrolysis plant as follows:

1. Feeding the waste tyres into the reactor and make sure both the feeding door and slagging door are closed tightly.
2. Heating the pyrolysis reactor. With the rising of temperature, the waste tyre will be pyrolyzed into oil gas.
3. Condensing the oil gas through the cooling system. The pyrolysis oil gas enters the condensing system and is liquefied into heavy oil and falls into the oil tank.
4. Cleaning the tail smoke. The dedusting and deodorization of the heavy oil in the oil tank will be disposed by the smoke cleaning system.
5. Discharging the carbon black. When the temperature in the reactor is cooled to below 40°C, the carbon black in the furnace will be discharged through the underground sealing device to avoid secondary pollution to the environment.
6. Pulling out the steel wire. After discharging the carbon black, opening the feeding door, and pulling out the steel wire as son as possible better control it within 5~10 minutes.


 tyre to oil recycling working process

Waste tyre recycling to fuel oil pyrolysis plant working process

Main features of waste tyre recycling to fuel oil pyrolysis plant:

1.Safety

Doing waste tyre recycling to fuel oil pyrolysis plant possesses strict quality control system and professional safety devices guarantee the plant running safely and wins a good reputation from customers.

2.Energy saving

Combustible gas that cannot be liquefied will be recycled and used as fuel to heat the reactor. The reuse of this gas can save fuel costs in the production process of waste tyre recycling to fuel oil pyrolysis plant.

3.Environmental friendly

Professional dedusting systems ensure our pyrolysis oil to diesel plant runs zero pollution.

Now, more and more people have realized the lucrative and efficient of waste recycling to fuel oil pyrolysis plant. If you are also interested in this plant, welcome to contact us!

Technical parameter of waste tyre recycling to fuel oil pyrolysis plant
  Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material waste tyre, waste plastic, waste rubber,
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T
  • 1.China Suppliers of waste tyre recycling to fuel oil pyrolysis plant,sale waste tyre recycling to fuel oil pyrolysis plant.provide client waste tyre recycling to fuel oil pyrolysis plant designs.
  • 2.No pollution to environment with emission report to meet international environment standard.
  • 3.Provide waste tyre recycling to fuel oil pyrolysis plant project report ,financial analysis and waste tyre recycling to fuel oil pyrolysis plant cost to clients.
  • 4.Send engineer Installation waste tyre recycling to fuel oil pyrolysis plant,training workers to operate machine.
  • 1.High oil yield;no bad smell during process.
  • 2.Enough safety systems;normal pressure.
  • 3.Recycled tail gas to heating waste tyre recycling to fuel oil pyrolysis plant;no waste emission.
  • 4.Auto welding to ensure waste tyre recycling to fuel oil pyrolysis plant life, service life will be 8-10years.
  • 5.Excellent service(pre-service,selling service,after-sale-service).
Average oil yield from Waste tyre recycling to fuel oil pyrolysis plant :
waste tyre to oil 45%
waste plastic to oil 60%
waste rubber to oil 75%
More details about waste tyre, waste plastic, waste rubber, oil yield
