Xinxiang Doing Renewable Energy Equipment Co., LtdWaste oil to diesel distillation plant product introduction
Waste oil to diesel distillation plant
Waste oil to diesel distillation plant can be used for refining crude oil, waste oil, pyrolysis oil, used engine oil into qualified diesel oil, and the diesel oil can be used in engine and generators. The waste oil to diesel distillation plant not only brings more benefits for us, but also protects the environment.
Waste oil to diesel distillation plant
If someone asks what the most valuable resource in the world is, oil resource is the best answer without doubt. That is means person who owns oil resource will owns wealth. So people have researched and developed waste tyre/plastic pyrolysis plant converting waste tyre/plastic to fuel oil . But purity and color of tyre/plastic oil cannot meet the standard for cars, and it cannot be used for cars directly. On the other hand, there are many waste oil appeared due to an increasing of all kinds of vehicles , such as waste motor oil, used engine oil and lubricating oil. So distillation technology is emerged.
Waste oil to diesel distillation plant
The environment can be protected from pollutants caused by combustion plants by using this waste oil to diesel plant. About two people are only required to operate on this machine. It has alkaline composite catalyst where all the harmful substances in used oil are treated to produce high quality refined oil without any discoloration. It operates under low energy consumption rate.

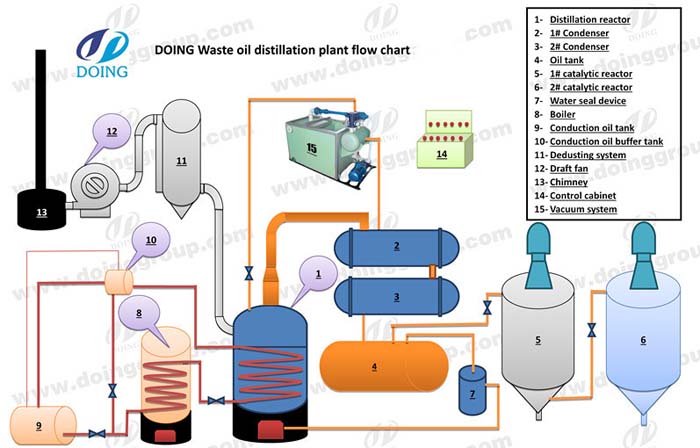

Waste oil to diesel distillation plant working process
Waste oil to diesel distillation plant working process
Prepare waste oil(waste plastic oil ,waste tire oil ,used motor oil ,used engine oil )
2. Heating for distillation
3. Cooling
4. Chemical process for cleaning the distillation oil
5. Collect final diesel product

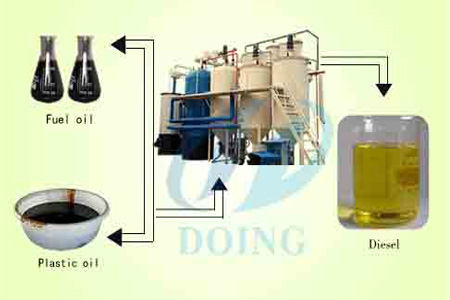

Diesel fuel application
Waste oil to diesel distillation plant can purify waste tire oil, plastic oil, waste engine oil, the final diesel can be used for tractors, trucks, and diesel oil generators, ships etc.
| Technical parameter of waste oil to diesel distillation plant | |
| Items | Contents |
| Model | DY-5t, DY-10t, DY-20t, DY-50t… |
| Raw material | waste engine oil, plastic oil, tyre oil, |
| Structure form | Vertical (easy cleaning and maintenance) |
| Heating method | Indirect heating to prolong the machine service life |
| Operating pressure | Constant pressure |
| Heating material | Coal, charcoal, fuel gas, fuel oil |
| Average out-put oil rate | 95% |
| Material of reactor | 4 reactor with different material |
| Thickness of reactor | 18mm |
| Mode of cooling | Recycled water cooling |
| Power in total | 20 Kw |
| Service life | average 7 years |
| Land area | 180㎡ |

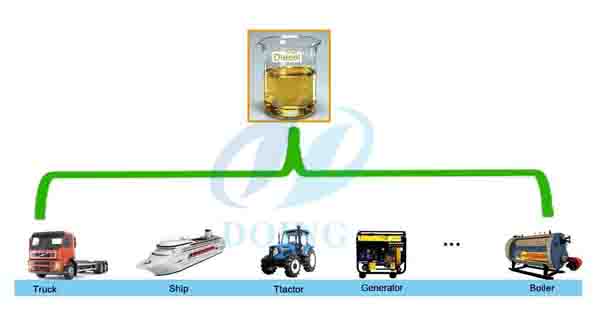

Diesel oil application after refined by distillation machine
Boiler
Generator
Tractor
Truck
Engineering machinery
Ship
