Semi-continuous pyrolysis machine 3D display video

The video shows the semi-continuous pyrolysis machine launched by Henan Doing Company for recycling waste solid hazardous waste like waste rubber tire pieces, plastic scrap particles, waste oil sludge. It is an innovative achievement that combines the advantages of continuous pyrolysis plant and batch pyrolysis equipment and has been redesigned and improved.

By watching this video, you can see that the semi-continuous waste pyrolysis machine is consistent with the batch type pyrolysis equipment in terms of external dimensions and processing capacity, and its innovation focuses mainly on the feeding and discharging of final products-carbon black.

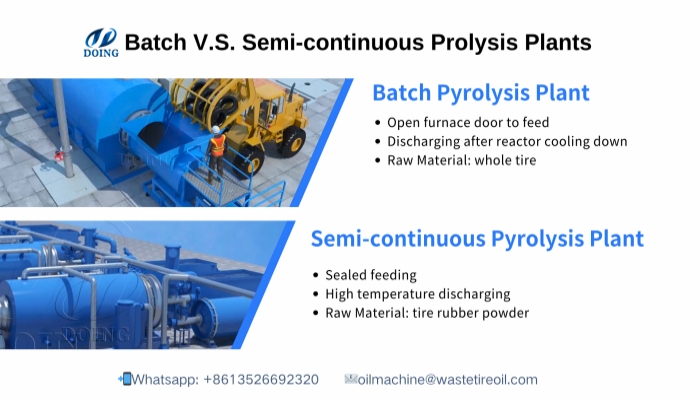

Differences of batch and semi-continuous pyrolysis technology

The feeding system of the semi-continuous waste pyrolysis machine has been upgraded to a spiral auger design, replacing the traditional large furnace door, which means that the raw materials must be pre-treated rubber plastic particles or semi-liquid oil sludge. The discharging end uses spiral slag discharge technology, which can be continuously discharged at a high temperature of 200°C, and then these high-temperature carbon black slags are introduced into the cooling device for rapid cooling. This process design allows the front end to continue feeding while cooling, greatly reducing the non-production waiting time.

Compared with batch pyrolysis equipment, which needs to wait until the furnace temperature drops below 50°C before slag can be safely discharged, reducing the operating risk, the semi-continuous pyrolysis machine has significantly improved safety and efficiency. Specifically, under the same configuration specifications, traditional batch equipment can only complete one pyrolysis cycle per day, while semi-continuous waste pyrolysis machine can achieve an efficient production mode of completing three cycles every two days. And it costs less than the fully continuous pyrolysis technology.

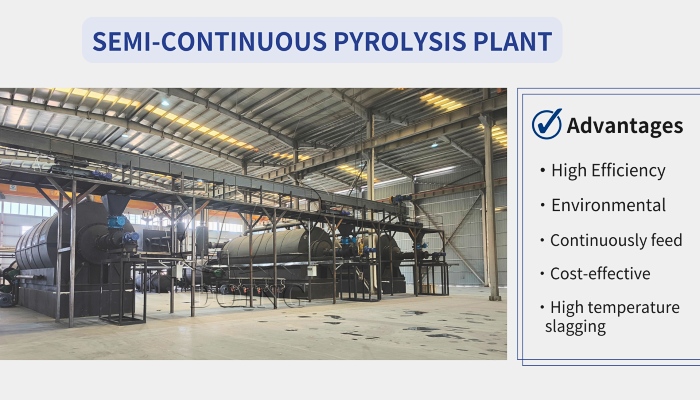

Semi-contiuous pyrolysis machine installed by Henan Doing

Please just feel free to send us your inquiry, and Henan Doing Company can custom a favorable price list of our semi-continuous pyrolysis machines for sale or other types of pyrolysis machines for recycling waste.
