Scrap tire derived fuel pyrolysis plant description in details

Scrap tire derived fuel pyrolysis plant product introduction

Update Time:2016/12/13  |   Pyrolysis plant

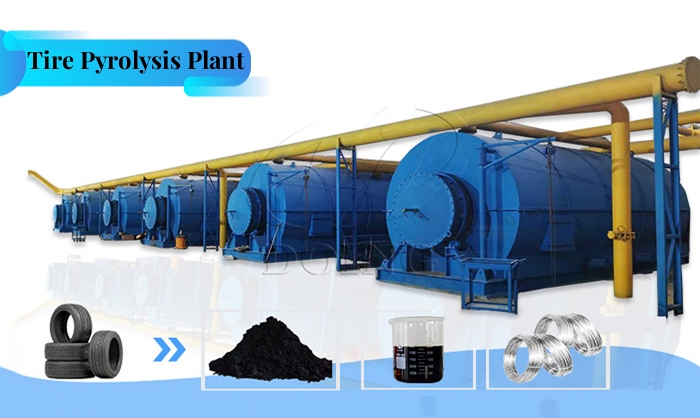

Scrap tire derived fuel pyrolysis plant
Scrap tire derived fuel pyrolysis plant product photo

Payment & Shipping Terms:

FOB Price
  • Min Order
  • Shipping Port
  • Delivery Time
  • Payment Terms
  • Supply Ability
US $ / Set
  • 1 Set/Sets
  • QingDao
  • 15days
  • T/T
  • 30sets/month

A scrap tire-derived fuel pyrolysis plant processes used tires to produce various valuable products through thermal decomposition in an oxygen-free environment. It employs advanced technology to decompose tires under controlled conditions, without combustion, yielding energy source and other byproducts, tire derived fuel(TDF/tpo-tire pyrolysis oil), carbon black, steel wire, syn-gas.

scrap tire derived fuel pyrolysis plant

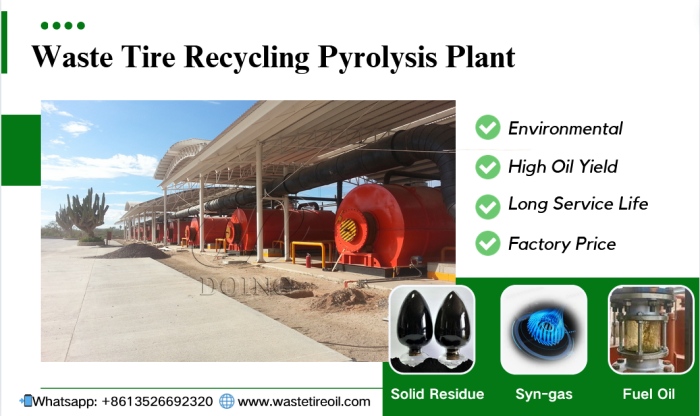

Scrap tire derived fuel pyrolysis plant

Scrap tire derived fuel pyrolysis plant development potential

Scrap Tires are an ubiquitous by-product of contemporary social and economic society. Our personal mobility is almost entirely dependent on the pneumatic tire, whether in automobiles, buses or even airplanes. The transport and delivery of most goods is also dependent on the pneumatic tire. Globally, an estimated one billion ELTs-end life tires are discarded yearly. This offers rich cheap waste tires for recycling. Let's take the USA as an example to give an introduction about the development potential of setting up scrap tire derived fuel pyrolysis plant.

scrap tire recycling way

Scrap tires for recycling and pyrolysis

More than 250 million scrap tires are generated annually in the United States and their proper management continues to be a solid waste management concern. Sound markets for scrap tires are growing and are taking an increasing percentage of annual generation. Of the three major markets - fuel, civil engineering applications, and ground rubber markets - the use of tires as a fuel is by far the largest market. The major fuel users include steel/brick/china/glass factories, cement kilns, pulp and paper mills, electrical generation facilities/heavy oil power plants, and some industrial facilities.

The Scrap tire derived fuel pyrolysis plant can effectively convert waste tires into fuels, like Oil, Carbon Black, and Hydrocarbon Gas etc. Here, all the final products extracted from waste tire pyrolysis process have wide applications and good sale markets. There are great economic and environmental benefits.

Scrap tire derived fuel pyrolysis plant advantage

1. Using Scrap tire derived fuel pyrolysis plant available for sale, stick to experience an excellent, eco-friendly & cost-effective solution for tyre recycling.

tire derived fuel pyrolysis plant

Scrap tire derived fuel pyrolysis plant

2. On an average, the entire pyrolysis process may lead to a yield of around 45-52% oil, 30-35% carbon black, and 15% syn-gas. The oil produced is mainly made up of high calorific value fuel oil & heavy fuel oil. Hence, the produced tire derived fuel oil is widely used as heating fuel for boilers or furnaces.

3. The planet pollution has truly become the biggest problem nowadays. Obviously, Scrap tire derived fuel pyrolysis plant gives you a meaningful strategy to it while promoting an eco-friendly solution by reduction of the hazards of land pollution due to the waste tire.

4. By converting the waste into energy, Scrap tire derived fuel pyrolysis plant offers an alternative energy source too.

Scrap tire derived fuel pyrolysis plant falls beneath the following kinds of industrial projects:

1. Waste to energy project

2. Renewable energy project

3. Waste tires and plastic pollution control equipment and recycling machine

4. Petrochemical

5. A sustainable pollution control equipment

Scrap tire derived fuel pyrolysis plant final product application

  • Fuel Oil

The fuel oil is between 45 and 52 percent. This fuel oil does apply in power plant factory, ceramic factory, aluminum factory, glass factory, painting factory, boiler system factory and boiler factory. With further refining by waste oil distillation plant, it may also serve as an alternative fuel of diesel.

pyrolysis tire derived fuel applications

Pyrolysis plant tire derived fuel applications

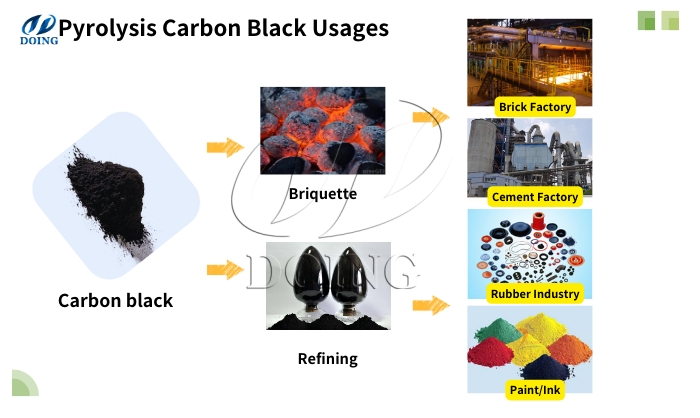

  • Carbon Black

The proportion found as soon as the recycling is 30 to 35 percent of carbon black. This device works extremely well within the electric cable jacketing, doormat and hose mat, conveyor ban, rubber addictive, automatic spare parts, heat isolation plus more.

tire pyrolysis carbon black applications

Scrap tire pyrolysis carbon black applications

  • Steel Wire

The steel wire can be recycled for various steel products, reducing the need for virgin steel.

  • Syngas

It will be used to heat the pyrolysis plant reactor to reduce the operation cost.

The implementation of a scrap tire derived fuel pyrolysis plant not only addresses the environmental issue of tire waste disposal but also contributes to the circular economy by converting waste into resources. DOING advanced pyrolysis plants prioritize safety measures, emissions control, and energy efficiency to ensure environmentally sustainable operations. And we have different capacities batch/semi-continuous/fully continuous scrap tire derived fuel pyrolysis plants for sale to meet different customers' requirements.

Technical parameter of scrap tire derived fuel pyrolysis plant
  Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material waste tire,
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T
  • 1.China Suppliers of scrap tire derived fuel pyrolysis plant,sale scrap tire derived fuel pyrolysis plant.provide client scrap tire derived fuel pyrolysis plant designs.
  • 2.No pollution to environment with emission report to meet international environment standard.
  • 3.Provide scrap tire derived fuel pyrolysis plant project report ,financial analysis and scrap tire derived fuel pyrolysis plant cost to clients.
  • 4.Send engineer Installation scrap tire derived fuel pyrolysis plant,training workers to operate machine.
  • 1.High oil yield;no bad smell during process.
  • 2.Enough safety systems;normal pressure.
  • 3.Recycled tail gas to heating scrap tire derived fuel pyrolysis plant;no waste emission.
  • 4.Auto welding to ensure scrap tire derived fuel pyrolysis plant life, service life will be 8-10years.
  • 5.Excellent service(pre-service,selling service,after-sale-service).
Average oil yield from Scrap tire derived fuel pyrolysis plant :
waste tire to oil 45%
More details about waste tire, oil yield
