Fully continuous waste plastic to oil machine
Fully continuous waste plastic to oil machine
Fully continuous waste plastic to oil machine is the new design of pyrolysis plant.Compared to batch pyrolysis plant. Fully continuous waste plastic to oil machine can run automatically and continuously. It will help you to save much time and labor during operation. You only need to feed raw materials into the reactor every few hours. The automatic and continuous waste tire plastic to oil machine itself will help you to collect oil into tank and slag the carbon black powder.
Fully continuous waste plastic to oil machine is converting waste plastic and oil sludge into useful resources ,such as fuel oil ,carbon black .We can get fuel oil about 45% to 50%,can get cabon black 30% to 35%.The final product of plastic recycle plastic to oil can be used widely.
Fully continuous waste plastic to oil machine features:
Safety:
1. Reactor with auto welding to guarantee the quality of welding seam and avoid cracking
2. Professional heating treatment and x-ray detection chamber for welding seam.
3. Vacuum system to prevent oil gas be back to reactor causing accident.
4. with temperature meter, pressure meter and safety valve.
Environment friendly:
1. Dedusting system to prevent gas and dust from coal burning
2. The exhaust gas will be recycled for heating reactor, no gas pollution
3. Well sealing on every junction parts to prevent gas leak, no smelly
Longer life:
1.use Q245R special steel plate ,thickness 16mm. welding seam with auto welding and will get heating treatment and x-ray detection to extend the life of reactor to the most extend.
2. The life will be 6-8 years
Energy saving:
1. Well sealing for heating system, no gas leak and saving fuel.

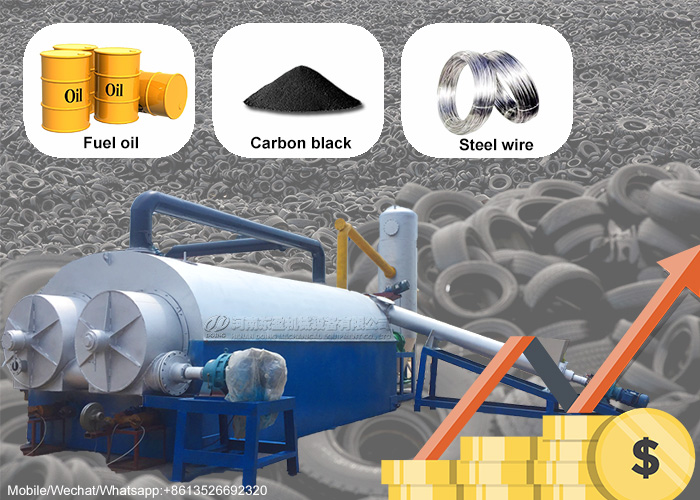

Fully continuous waste plastic to oil machine final product and application
Automatic and continuous waste tire plastic pyrolysis plant final product and application:
| NO | Name | Percentage | Usage |
| 1 | Tyre fuel oil | 45% |
1.Can be sold directly 2.Can be as fuel 3.Can be used industrial and commercial purposes. Such as power plant factory,glass factory,cement factory,ceramic factory. |
| 2 | Carbon black | 30% |
1.Can be sold directly 2.Can be used electric cable jacketing,black nylon bag,rubber additive |
| 3 | Steel wire | 15% |
1.Can be sold directly 2.Make steel bloom by use hydraulic press-packing |
| 4 | Oil gas | 10% |
1.Can be as fuel burn by use gas burning system 2.Extra gas also be storage as fuel for other heating |
| Technical parameter of fully continuous waste plastic to oil machine | ||||
|---|---|---|---|---|
| Items | Contents | |||
| 1 | Equipment type | DY-1-6 | DY-1-8 | DY-1-10 |
| 2 | Raw material | waste tyre, waste plastic, | ||
| 3 | Structural form | Horizontal rotation | Horizontal rotation | Horizontal rotation |
| 4 | 24-hour Capacity | 6 ton | 8 ton | 10 ton |
| 5 | Oil yield | 2.7-3.3ton | 3.6 -4.4ton | 4.5 -5.5ton |
| 6 | Operating pressure | Normal | Normal | Normal |
| 7 | Material of pyrolysis Reactor | Q245R | Q245R | Q245R |
| 8 | Thickness of pyrolysis Reactor | 16mm | 16mm | 16mm |
| 9 | Rotate speed of pyrolysis Reactor | 0.4turn/minute | 0.4turn/minute | 0.4turn/minute |
| 10 | Total power | 19KW | 19KW | 19KW |
| 11 | Mode of cooling | Water cooling | Water cooling | Water cooling |
| 12 | Cooling area of condenser | 100sqm | 100sqm | 100sqm |
| 13 | Kind of transmission | Internal gear drive | Internal gear drive | Internal gear drive |
| 14 | Noise dB(A) | ≤85 | ≤85 | ≤85 |
| 15 | Size of Reactor(D×L) | 2200×6000 | 2200×6600 | 2600×6600 |
| 16 | Working form | Intermittent operation | Intermittent operation | Intermittent operation |
| 17 | Delivery time | 20days | 20days | 20days |
| 18 | Weight | 27T | 30T | 35T |

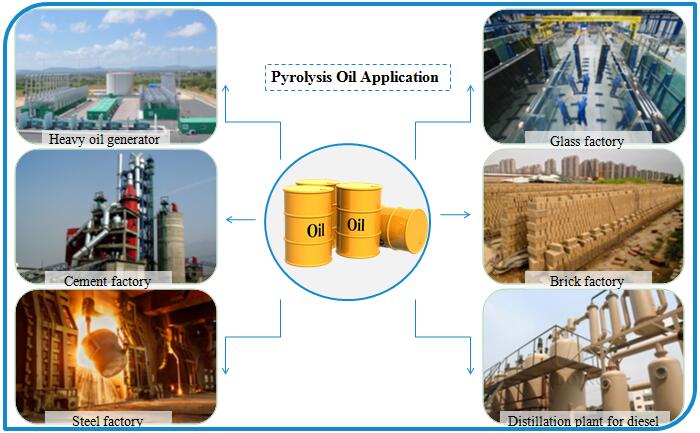

Pyrolysis oil appliaction
Hot water boiler
Fuel pump
Industrial boiler
Brick factory
Steel mills
Glass factory
