Carbon black pellet Production line product introduction

Carbon black pellet Production line product photo

Carbon black pellet production line is consist of  Carbon black briquetting machine,Grinding Mill ,Binder mixer and conveyor . It is used for further processing the product which is produced by refinery equipment, carbon black. Carbon Black powder can be pressed into balls, which is turned into a heating material.

Features:

a.Simple operation, Fully automatic operation
b.Large quantity
c.Efficient Work

Technical data:

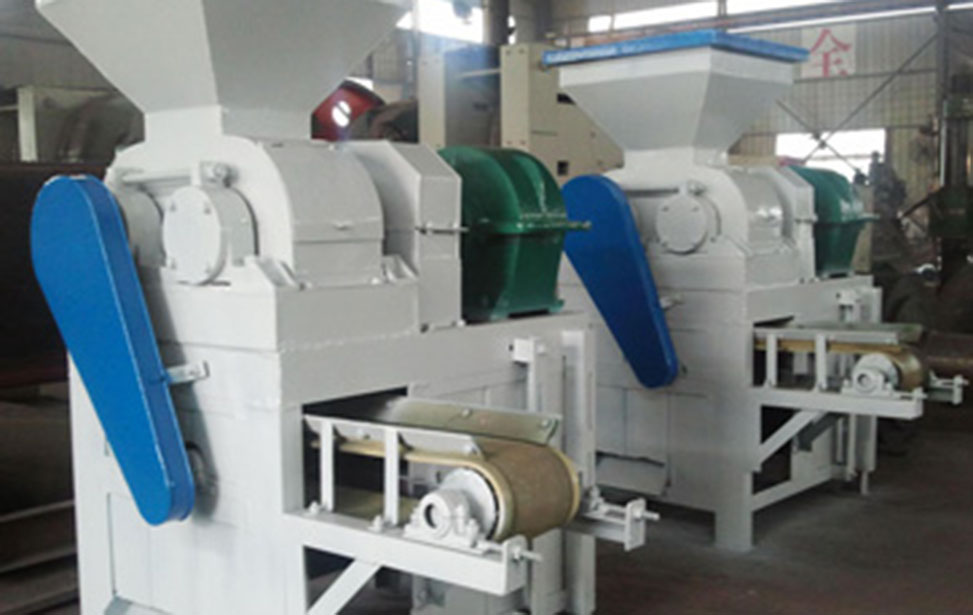

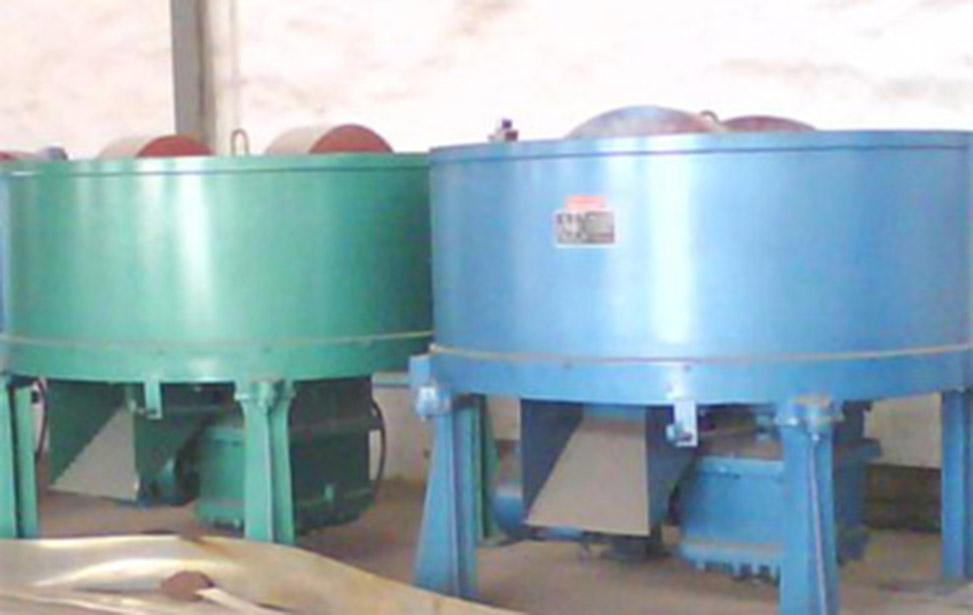

Item	Briquetting machine	Grinding mill
1
2	YHQ-290	S112
3	Deceleration model number:   ZQ 350 type	Every time mixing quantity: 100 kg
4	Speed ratio:  1:31.5	Every time mixing time: 3-5 minutes
5	Roller size:φ290mm Width:200mm	Productivity: 1.5-2ton/h
6	Roll leather material: 65mn quenching process	The total transmission ratio: 30.9
7	Surface hardness:56-58	Principal axis rotate:32r/min
8	Spindle speed: 12-15 RPM	Weight:1000kg
9	Power: 5.5 kw	Power: 4 kw
10	Capacity:1.5-2 ton	Speed: 1450 r/min
11	Dimension:1600*1400*1400mm	Quantity: 1 set
12	Quantity: 1 set

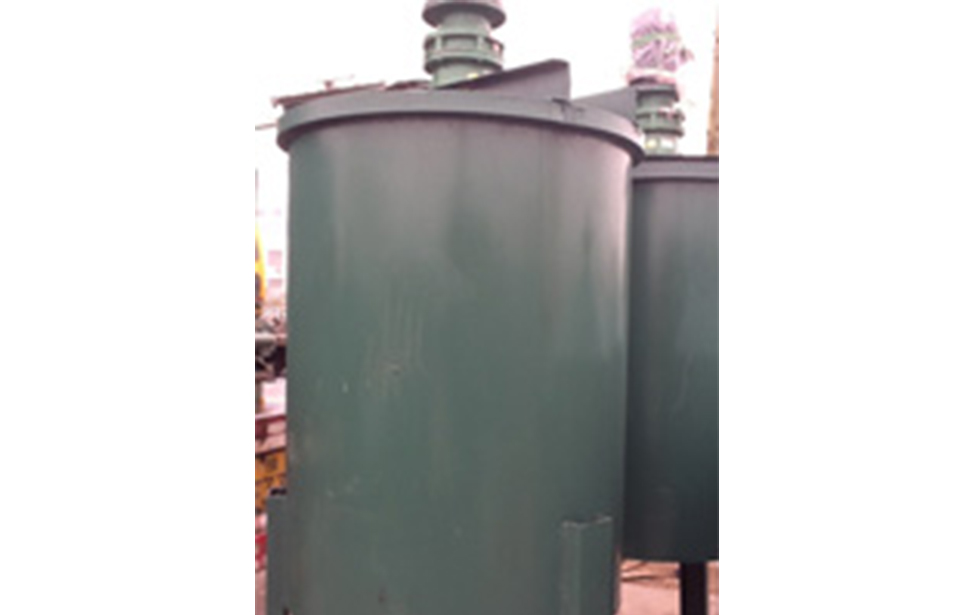

Diameter:950mm	size:5000 mm
Hight:2700mm	Quality 1set
Quality:1set

Application:

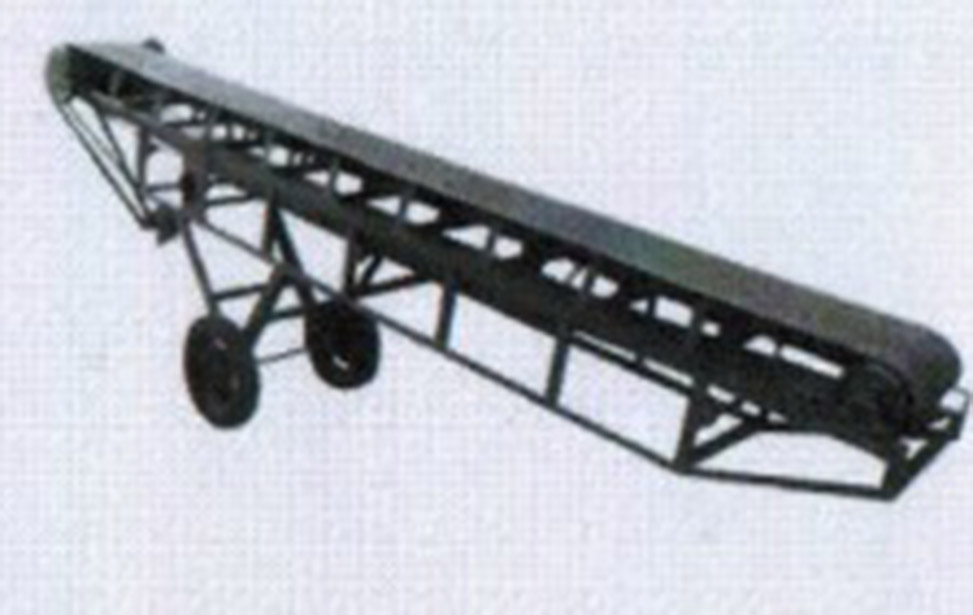

Carbon black pellet Production Line stirs in the Binder mixer with catalyst firstly, then put the stirred catalyst and carbon black into Grinding mill for stirring and mixing.The mixed carbon black  is conveyed through the conveyor belt to the Carbon Black Briquetting machine,pressed into  balls.
